SafetySureTM
Transfer Gurney
ITEM 4012 - lift use limit 400
lbs.
ITEM 4020 - lift use limit 600 lbs.
ITEM 4115 (without plastic insert) - lift use limit 250 lbs.
ITEM 4116 (without plastic insert) - lift use limit 350 lbs.
ITEM 4117 (without plastic insert) - lift use limit 500 lbs.
Applications
SafetySure Transfer
Gurney (SST Gurney 4012) is used primarily to:
Advantages

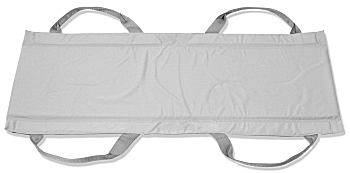

The SST Gurney
consists of a padded sheet and a strong strap that forms a figure eight in the
product. It has four handgrips (4012). The weight is distributed evenly over the
product; the comfortable handgrips provide good working positions. The SST
Gurney covers the four friction points on the hips and shoulders. This,
together with its slick underside, enables even heavy patients to be moved with
ease.
Positioning
The SST Gurney is
placed underneath the patient from the head to the hips. This position is
achieved by turning the patient onto one side and then inserting the SST Gurney
with the handgrips nearest the patient folded beneath (fig. 1). The
simplest way of exposing the handgrips is to insert one's hands at the top and
bottom and pull the handgrips out with a sweeping movement. When two
helpers lift a patient up from the floor, the SST Gurney should be placed with
the bottom edge at the hollow of the knees (fig. 9). Before removing the
SST Gurney, fold in the handgrips (fig. 2). Remove the SST Gurney by
turning the patient onto one side and pulling carefully, upward at an angle
(fig. 5).
Moving
a patient up in bed
There are many ways
to move a patient further up in bed. If the patient is not too heavy, a

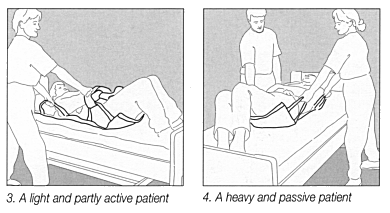

caregiver can carry out this operation solo (fig 3); if the patient is heavy,
another helper will be needed. Two helpers can stand on the same side, or
on opposite sides. It is an advantage if the patient is able to push with
the legs (fig.4). Take care not to pull so hard that the patient's head
bumps against the headboard of the bed.
Turning
in bed
There are many ways

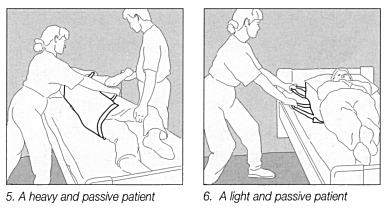

to turn a patient in bed. If there are two helpers available (fig. 5), you
have a choice between standing on the same or on opposite sides of the bed.
In the case of a fairly light or an active patient, only one helper may be
needed (fig. 6). Turning is generally accomplished in two stages:
the patient is first moved to the edge of the bed and then turned.
Remember to fold in the handgrips and remove the pillow before turning.
The patient should be encouraged to assist in the turning with his/her head,
arms and legs, if possible. If you have put the handgrips under the
product before turning, it is extremely easy to remove the SST Gurney.
Transfer
between bed and shower trolley, x-ray table, etc.
A transfer from a
bed to a shower trolley, an x-ray table, etc., can be done in two ways.

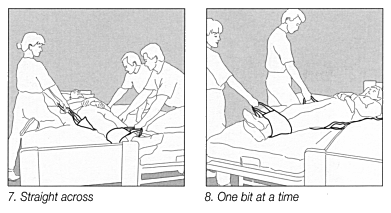

You can either move the patient straight across (fig. 7), or else you can lift
the patient by the legs and hips first, followed by the upper part of the body,
thereby reducing the load. The transfer is accomplished most easily by
making use of a SST Sling around the feet/ankles (fig. 8). First lock the
casters on both transfer points and make sure that the two litters are as near
to one another as possible.
Lifting
from floor to bed
Care should be taken
when lifting, for the safety of the helpers as well as the patient. If
there are enough helpers in relation to the weight to be lifted, the SST Gurney
is an excellent aid. It can be used for a lift performed by two to six

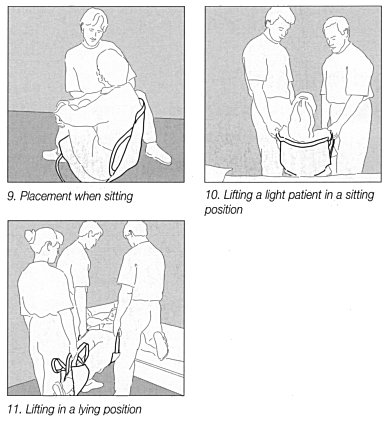

helpers. The lift may be done with the patient reclining (fig. 11) or
sitting (fig. 10). If one SST Gurney is to be used with two to five
helpers, if should be placed with the bottom edge at the hollow of the knees
(fig. 9). If there are six helpers and two SST Gurneys available, it is
best to place the two SST Gurneys so they overlap at the patient's midsection,
leaving six handgrips for the six helpers.
Directions
for use
Consult the manual
before you use the SST Gurney. If in doubt about the proper use of the SST
Gurney call Scan Medical at our toll free number 888-593-0377 for free
consultation.
SafetySureTM
Transfer Gurney
|
Item |
Specification |
Price |
Purchase
|
4012
small
|
Dimensions: Length
39" x Width 16"
Thickness: 1/4"
Weight: 2 lbs.
Handles: 4
Use limit: 400
lbs.
|
$99.97
|
|
|
SafetySureTM
Transfer Gurney
Item 4020 (LARGE) -
Same as Item 4012 with one additional major use:
Emergency - Rescue Evacuations. SST Gurney Large has 10 handgrips and
can accommodate 10 helpers. SST Gurney Large has been tested for lifts in
excess of 1000 lbs.
|
Item |
Specification |
Price |
Purchase
|
4020
large
|
Dimensions: Length
60" x Width 34"
Thickness: 1/4"
Weight: 5 lbs.
Handles: 10
Use limit: 600
lbs.
|
$189.97
|
|
|
SafetySureTM
Transfer Gurney without plastic insert
Item 4115 (small)
|
Item |
Specification |
Price |
Purchase
|
4115
small
|
Dimensions: Length
39" x Width 16"
Thickness: 1/4"
Weight: 1 lbs.
Handles: 4
Use limit: 250
lbs.
|
$69.97
|
|
|
SafetySureTM
Transfer Gurney without plastic insert
Item 4116 (medium)
|
Item |
Specification |
Price |
Purchase
|
4116
medium
|
Dimensions: Length
39" x Width 36"
Thickness: 1/4"
Weight: 2 lbs.
Handles: 4
Use limit: 350
lbs.
|
$81.97
|
|
|
SafetySureTM
Transfer Gurney without plastic insert
Item 4117 (large)
|
Item |
Specification |
Price |
Purchase
|
4117
large
|
Dimensions: Length
60" x Width 34"
Thickness: 1/4"
Weight: 4 lbs.
Handles: 8
Use limit: 500
lbs.
|
$99.97
|
|
